| Ask Lasest Price | |
| Brand Name : | BOE |
| Model Number : | EV101WXM-N80 |
| Certification : | CE,ROHS |
| Price : | $40 |
| Payment Terms : | T/T |
| Supply Ability : | 5000pcs |
| Delivery Time : | 3-5 work days |

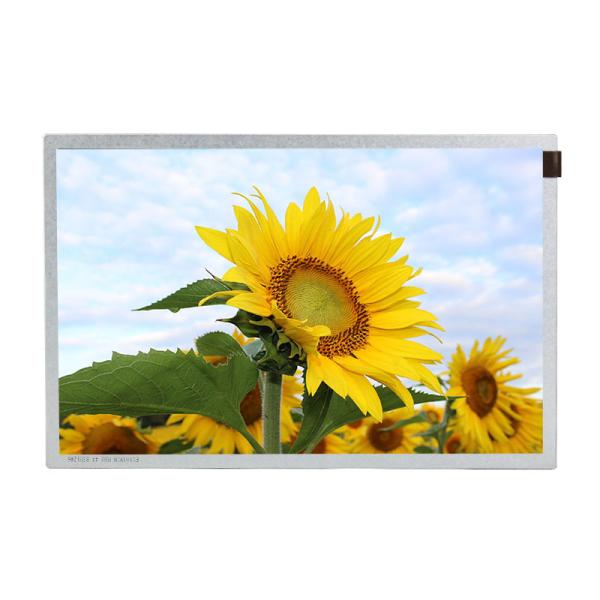

10.1 Inch 1280x800 IPS LCD Display For Industrial Medical Imaging
General Description:
EV101WXM-N80 is a 10.1-inch LCD module with a-Si TFT-LCD technology from BOE, which is equipped with WLED backlight, no backlight driver, and no touch. It has an operating temperature of -20 ~ 70°C and a storage temperature of -30 ~ 80°C. Based on its white LED backlight and other features, this model is recommended for industrial and medical imaging applications.
Specifications:
| Parameter | Specification | Unit |
| Active Area | 216.96(W)×135.6(H) | mm |
| Number Of Pixels | 1280(RGB)×800 | pixels |
| Luminance | 400 cd/m² (Typ.) | |
| Pixel Arrangement | Pixels RGB stripe arrangement | |
| Display Mode | Normally Black | |
| Display Colors | 16.2M | colors |
| Interface | LVDS (1 ch, 8-bit) | |
| Contrast Ratio | 900 : 1 | |
| Viewing Angle(CR>10) | 85/85/85/85 (Typ.) | |
| Response Time | 30 (Typ.)(Tr+Td) | ms |
| Color Gamut | 48%NTSC | |
| Weight | 505g (Max.) | |
| Outline Dimension | 233.2(W)×152.9(H)×10.4(D) | mm |
Absolute Maximum Ratings:
Item | Symbol | Values | Unit | |
| Min. | Max. | |||
| Operation Temperature | TOP | -20 | 70 | ℃ |
| Storage Temperature | TST | -30 | 80 | ℃ |
Handling Precautions:
1.If you should swallow the liquid crystal, first, wash your mouth thoroughly with water,then drink a lot of water and induce vomiting, and then, consult a physician.
2.In handling the LCD, wear non-charged material gloves. And the conducting wrist to the earth and the conducting shoes to the earth are necessary.
|
|
