| Brand Name : | BOE |
| Model Number : | NT156WHM-N12 |
| Certification : | ROHS |
| Payment Terms : | T/T |
| Supply Ability : | 5000pcs |
| Delivery Time : | 5-8 work days |
| Price : | USD25 |

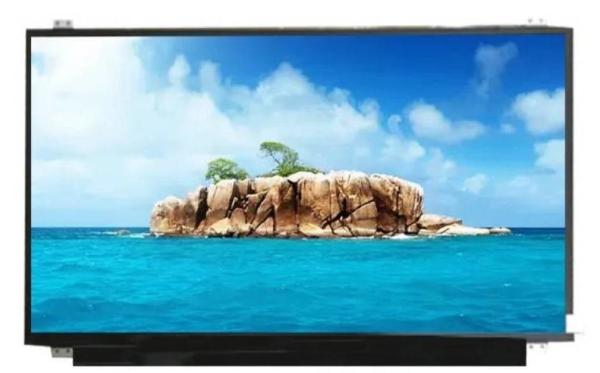

15.6 Inch Tft Display 1366x768 With Edp Interface 30 Pins
NT156WHM-N12
General Description:
1.1 lane eDP Interface with 1.62Gbps Link Rates
2.Thin and light weight
3.6-bit color depth, display 262K colors
4.Single LED Lighting Bar. (Down side/Horizontal Direction)
5.No Mounting frame
6.Green Product (RoHS & Halogen free product)
7.On board LED Driving circuit
8.Low driving voltage and low power consumption
9.On board EDID chip
Specifications:
| Parameter | Specification | Unit |
| Active area | 344.23(H) × 193.54(V) | mm |
| Number of pixels | 1366 (H) × 768 (V) | pixels |
| Pixel pitch | 0.252 (H) X 0.252 (V) | mm |
| Pixel arrangement | RGB Vertical stripe | |
| Display colors | 262K | colors |
| Display mode | Normally White | |
| Dimensional outline | 359.5(H)*223.8(V) (W/PCB)*3.8(Max) | mm |
| Weight | 400 (max) | g |
| Surface treatment | Glare | |
| Back-light | Lower Down side, 1-LED Lighting Bar type | |
| PD : 1.2 (max) | W |
| PBL :2.6(max) | W | |
| Ptotal :3.8(max) | W |
Absolute Maximum Ratings:
| Parameter | Symbol | Min. | Max. | Unit |
| Power Supply Voltage | VDD | -0.3 | 4.0 | V |
| Logic Supply Voltage | VIN | Vss-0.3 | VDD+0.3 | V |
| Operating Temperature | TOP | 0 | +50 | ℃ |
| Storage Temperature | TST | -20 | +60 | ℃ |
Electrical Specifications:
| Parameter | Min. | Typ. | Max. | Unit | |
| Power Supply Voltage | VDD | 3.0 | 3.3 | 3.6 | V |
| Permissible Input Ripple Voltage | VRF | - | - | 100 | mV |
| Power Supply Current | IDD | - | TBD | - | mA |
| Differential Input Voltage | VID | 200 | - | 600 | mV |
| PD | - | 1.02 | 1.2 | W |
| PBL | - | - | 2.6 | W | |
Ptotal | - | - | 3.8 | W | |
Interface Connection:
| Terminal | Symbol | Functions |
| Pin No. | Symbol | Description |
| 1 | CABC_ENABLE | Reserved DCR function, not open for now |
| 2 | H_GND | Ground |
| 3 | NC | No Connection |
| 4 | NC | No Connection |
| 5 | H_GND | Ground |
| 6 | LANE0_N | eDP RX channel 0 negative |
| 7 | LANE0_P | eDP RX channel 0 positive |
| 8 | H_GND | Ground |
| 9 | AUX_CH_P | eDP AUX CH positive |
| 10 | AUX_CH_N | eDP AUX CH negative |
| 11 | H_GND | Ground |
| 12 | LCD_VCC | Power Supply, 3.3V (typ.) |
| 13 | LCD_VCC | Power Supply, 3.3V (typ.) |
| 14 | LCD_Self_Test | Panel self test enable |
| 15 | H_GND | Ground |
| 16 | H_GND | Ground |
| 17 | HPD | Hot plug detect output |
| 18 | BL_GND | LED Ground |
| 19 | BL_GND | LED Ground |
| 20 | BL_GND | LED Ground |
| 21 | BL_GND | LED Ground |
| 22 | BL_ENABLE | LED enable pin(+3.3V Input) |
| 23 | BL_PWM | System PWM Signal Input |
| 24 | NC | No Connection |
| 25 | COLOR_ENABLE | test enable |
| 26 | BL_POWER | LED Power Supply 5V-21V |
| 27 | BL_POWER | LED Power Supply 5V-21V |
| 28 | BL_POWER | LED Power Supply 5V-21V |
| 29 | BL_POWER | LED Power Supply 5V-21V |
| 30 | NC | No Connection |
Handling Precautions:
1.As the LCD panel and back - light element are made from fragile
glass material, impulse and pressure to the LCD module should be
avoided.
2.As the surface of the polarizer is very soft and easily scratched, use a soft dry cloth without chemicals for cleaning.
|
|
