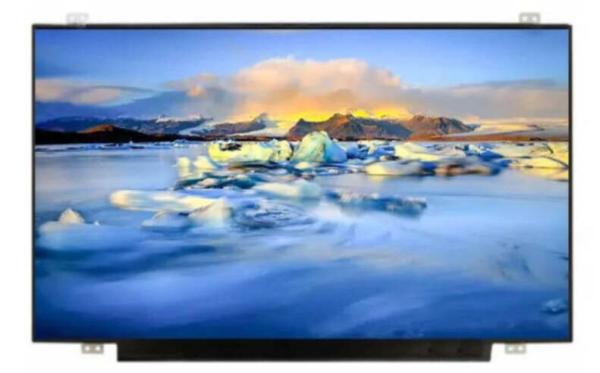

15.6 Inch Tft Screen 1366x768 With Edp Interface 30 Pins
NT156WHM-N12
General Description:
Typical features of NT156WHM-N12 are: white LED backlight, LED
driver included, flip-flop terminals, mirror surface, eDP1.2. It
has an operating temperature of 0 ~ 50°C and a storage temperature
of -20 ~ 60°C. This model is suitable for notebook applications.
Specifications:
| Parameter | Specification | Unit |
| Active area | 344.23(H) × 193.54(V) | mm |
| Number of pixels | 1366 (H) × 768 (V) | pixels |
| Pixel pitch | 0.252 (H) X 0.252 (V) | mm |
| Pixel arrangement | RGB Vertical stripe | |
| Display colors | 262K | colors |
| Display mode | Normally White | |
| Dimensional outline | 359.5(H)*223.8(V) (W/PCB)*3.8(Max) | mm |
| Weight | 400 (max) | g |
| Surface treatment | Glare | |
| Back-light | Lower Down side, 1-LED Lighting Bar type | |
| PD : 1.2 (max) | W |
| PBL :2.6(max) | W | |
| Ptotal :3.8(max) | W |
Absolute Maximum Ratings:
| Parameter | Symbol | Min. | Max. | Unit |
| Power Supply Voltage | VDD | -0.3 | 4.0 | V |
| Logic Supply Voltage | VIN | Vss-0.3 | VDD+0.3 | V |
| Operating Temperature | TOP | 0 | +50 | ℃ |
| Storage Temperature | TST | -20 | +60 | ℃ |
Electrical Specifications:
| Parameter | Min. | Typ. | Max. | Unit | |
| Power Supply Voltage | VDD | 3.0 | 3.3 | 3.6 | V |
| Permissible Input Ripple Voltage | VRF | - | - | 100 | mV |
| Power Supply Current | IDD | - | TBD | - | mA |
| Differential Input Voltage | VID | 200 | - | 600 | mV |
| PD | - | 1.02 | 1.2 | W |
| PBL | - | - | 2.6 | W | |
Ptotal | - | - | 3.8 | W | |
Interface Connection:
| Terminal | Symbol | Functions |
| Pin No. | Symbol | Description |
| 1 | CABC_ENABLE | Reserved DCR function, not open for now |
| 2 | H_GND | Ground |
| 3 | NC | No Connection |
| 4 | NC | No Connection |
| 5 | H_GND | Ground |
| 6 | LANE0_N | eDP RX channel 0 negative |
| 7 | LANE0_P | eDP RX channel 0 positive |
| 8 | H_GND | Ground |
| 9 | AUX_CH_P | eDP AUX CH positive |
| 10 | AUX_CH_N | eDP AUX CH negative |
| 11 | H_GND | Ground |
| 12 | LCD_VCC | Power Supply, 3.3V (typ.) |
| 13 | LCD_VCC | Power Supply, 3.3V (typ.) |
| 14 | LCD_Self_Test | Panel self test enable |
| 15 | H_GND | Ground |
| 16 | H_GND | Ground |
| 17 | HPD | Hot plug detect output |
| 18 | BL_GND | LED Ground |
| 19 | BL_GND | LED Ground |
| 20 | BL_GND | LED Ground |
| 21 | BL_GND | LED Ground |
| 22 | BL_ENABLE | LED enable pin(+3.3V Input) |
| 23 | BL_PWM | System PWM Signal Input |
| 24 | NC | No Connection |
| 25 | COLOR_ENABLE | test enable |
| 26 | BL_POWER | LED Power Supply 5V-21V |
| 27 | BL_POWER | LED Power Supply 5V-21V |
| 28 | BL_POWER | LED Power Supply 5V-21V |
| 29 | BL_POWER | LED Power Supply 5V-21V |
| 30 | NC | No Connection |
Handling Precautions:
1.Obey the supply voltage sequence. If wrong sequence is applied,
the module would be damaged.
2.Do not store and/or operate the LCD module in a high temperature
and/or humidity atmosphere. Storage in an electro-conductive
polymer packing pouch and under relatively low temperature
atmosphere is recommended.
|
|
