| Brand Name : | INNOLUX |
| Model Number : | H070VG50-C1 |
| Certification : | ROHS |
| Price : | USD43 |
| Payment Terms : | T/T |
| Supply Ability : | 3000pcs |
| Delivery Time : | 5-8 work days |
7 Inch For 800x480 HDMI Signal Lcd Display With Capacitive Touch
Screen
Specifications:
| Item of general information | Contents | Unit |
| LCD Display Size(Diagonal) | 7 | inch |
| LCD Display Type | TFT/TRANSMISSIVE | - |
| LCD Display Mode | Normally White | - |
| Recommended Viewing Direction | 12 | o’clock |
| Gray inversion Direction | 6 | o’clock |
| Module size (W×H×T) | 165.30×121.00×7.75 | mm |
| Active area (W×H) | 154.08×85.92 | mm |
| Number of pixels(Resolution) | 800RGB×480 | pixel |
| Pixel pitch (W×H) | 0. 1926×0. 179 | mm |
| Color Pixel Arrangement | RGB Stripe | - |
| LCD Driver IC | TBD | - |
| Module Interface Type | HDMI(Display)&USB(touch) | - |
| System Support | Android/Win7/Win8/Win10 | |
| Module Input voltage | 5.0V | V |
| Module Power consumption | TBD | mW |
| Color Numbers | 16.7M | - |
| Backlight Type | White LED | - |
Ctp Characteristics:
Item of CTP characteristics | Specification | Unit |
| Panel Type | Glass Cover + Glass Sensor | - |
| Resolution | 800 × 480 | pixel |
| Surface Hardness | ≥6H | - |
| Transparency | ＞82% | - |
| Driver IC | TBD | - |
| Interface Type | USB | - |
| Support Points | 5 | - |
| Sampling Rate | 20~100 | Hz |
| Supply voltage | 3.3 |
Optical Specification:
| Item of electro-optical characteristics | Symbol | Condition | Min. | Typ. | Max. | Unit | |
| Response time | Tr+Tf | θ=0 ∅=0 | - | 25 | 40 | ms | |
| Contrast Ratio | CR | - | 320 | - | - | ||
| Luminance uniformity | WHITE | - | 80 | - | % | ||
| Surface Luminance | Lv | - | 250 | - | cd/m2 | ||
| White | White x | θ=0 ∅=0 | - | 0.302 | - |
|
| White y | - | 0.338 | - | ||||
| Red | Red x | - | 0.606 | - | |||
| Red y | - | 0.325 | - | ||||
| Green | Green x | - | 0.303 | - | |||
| Green y | - | 0.567 | - | ||||
| Blue | Blue x | - | 0. 147 | - | |||
| Blue y | - | 0. 161 | - | ||||
| ∅=90(12 o’clock) | CR ≥ 10 | - | 60 | - | deg | |
| ∅=270(6 o’clock) | - | 70 | - | deg | |||
| ∅=0(3 o’clock) | - | 60 | - | deg | |||
| ∅=180(9 o’clock) | - | 60 | - | deg | |||
| NTSC ratio | - | - | - | 50 | - | % | |

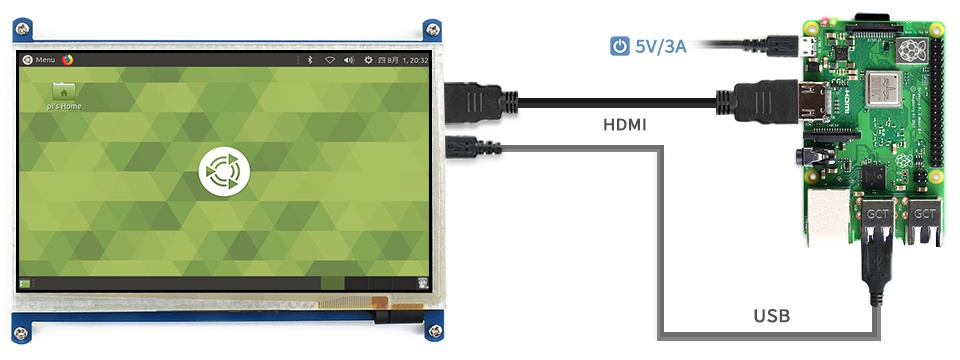

Connection Examples:
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero W
Working With Mini PC
|
|
