| Ask Lasest Price | |
| Brand Name : | HannStar |
| Model Number : | HSD123JPW3-A15 |
| Certification : | ROHS |
| Price : | USD104.65 |
| Payment Terms : | T/T |
| Supply Ability : | 5000pcs |
| Delivery Time : | 5-8 work days |

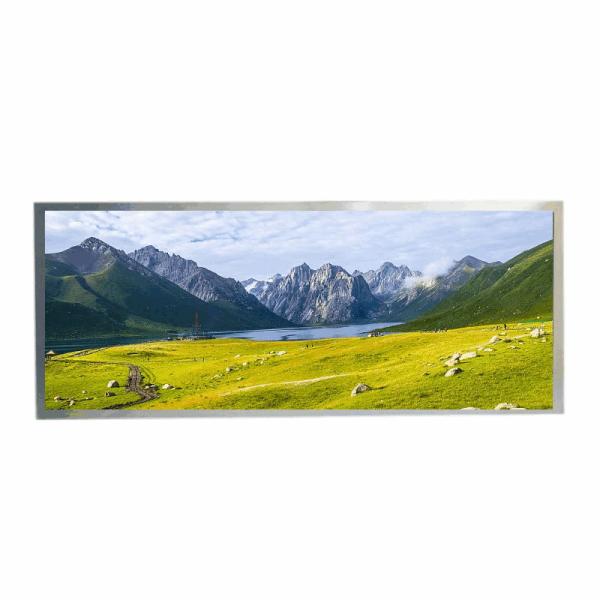

HannStar 12.3" IPS LCD 1920x720 850nits WLED LVDS 50pins
General Description:
The HSD123JPW3-A15 is a 12.3 inch diagonal a-Si TFT-LCD display panel product from HannStar Display Corporation, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C , and the maximal vibration level of 2.9G (28.4 m/s²).
Specifications:
| Item | Specification | Unit | |
| Outline Dimension | 302.0(H) x 125.4(V) x6.2(Typ.) | mm | |
| Display area | 292.032(H) x 109.512(V) | mm | |
| Number of Pixel | 1920 RGB (H) x 720(V) | pixels | |
| Pixel pitch | 0.1521(H) x 0.1521 (V) | mm | |
| Pixel arrangement | RGB Vertical stripe | ||
| Display mode | Normally Black | ||
| NTSC | 75 (typ.) | % | |
| Surface treatment | HC (Glare) | ||
| Weight | 345 (Typ.) | g | |
| Back-light | Single LED (Side-Light type) | ||
Power Consumption | Logic System (White Pattern) | (1.32 W) (Max.) | W |
| B/L System | (11.968 W) (Max.) | W | |
Absolute Maximum Ratings:
| Item | Symbol | Min. | Max. | Unit |
| Operating Temperature | Topa | -30 | 85 | ℃ |
| Storage Temperature | Tstg | -40 | 90 | ℃ |
Handling Precautions:
1.Please do not leave LCD module in the environment of high humidity and high temperature for a long time.
2.Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that treatment persons are connected to ground through wrist band etc.
|
|
